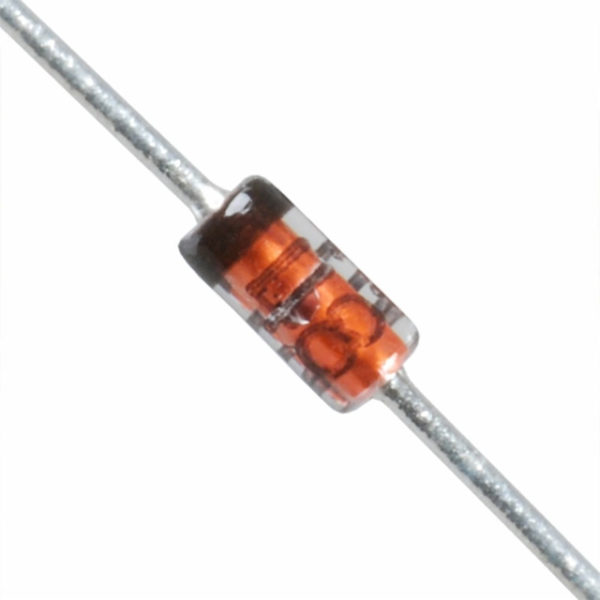

Silicone Diode – 1N4148(10 pcs)
- Ultra Fast Recovery Diode
- Material: Germanium
- Cathode Band Color: Black
- Continuous Reverse Voltage: 100V Max
- High Switchig Speed: Max 4ns
- Repetitive peak forward current: max.450 mA
₹13.00
Compare
The 1N4148 is a standard silicon switching signal diode. It is one of the most popular and long-lived switching diodes because of its dependable specifications and low cost.The 1N4148 is useful in switching applications up to about 100 MHz with a reverse-recovery time of no more than 4 ns.
Technical Specifications
- Voltage – DC Reverse (Vr) (Max): 100V
- Current – Average Rectified (Io): 200mA
- Voltage – Forward (Vf)(Max)@ If: 1V@10mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4ns
- Current – Reverse Leakage @ Vr: 5ĀµA@100V
- Capacitance @ Vr, F: 4pF @ 0V, 1MHz
- Mounting Type: Through Hole
- Package: DO-204AH, DO-35, Axial
- Operating Temperature: -65Ā°C to175Ā°C
