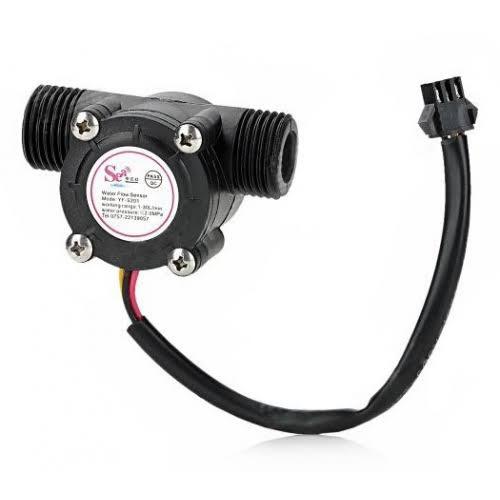

This is YF-S201 Water Flow Measurement Sensor with 1-30Litre/min Flow Rate in black color. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. By counting the pulses from the output of the sensor, you can easily calculate water flow. Each pulse is approximately 2.25 milliliters.
Technical Specifications
- Working Voltage (V): 5 to 18 V
- Max current draw: 15mA @ 5V
- Working Flow Rate (Liters/Minute): 1 to 30
- Operating Temperature range (°C): -25 to +80
- Operating Humidity Range: 35% – 80% RH
- Accuracy: ±10%
- Maximum water pressure: 2.0 MPa
- Output duty cycle: 50% ±10%
- Output rise time (µsec): 0.04
- Pulses per Liter: 450
- Output fall time (µsec): 0.18
- Outer diameter (mm): 20
- Intake diameter (mm): 11
- Outlet diameter (mm): 11
- Length (mm): 62.5
- Width (mm): 36
- Height (mm): 35
- Weight (gm): 50
